When it comes to stripped-down bagger style, highway comfort, modern technology and an unruly attitude, this is a state-of-the-art motorcycle.
Length
96.5 in. (2,450 mm)
Weight
775 lbs. (352 kg) dry
810 lbs. (367 kg) running order
Ground Clearance
5.3 in. (135 mm)
Wheelbase
64 in. (1,625 mm)
Seat Height8
26.1 in. (662.94 mm) laden
27.4 in. (695 mm) unladen
Engine2
High Output Twin Cam 103 with integrated oil cooler
Displacement
103.1 ci (1,690 cc)
Bore x Stroke
3.87 x 4.38 in. (98.4 x 111.1 mm)
Torque3
104.7 ft. lbs. (142 Nm) @ 3,250 rpm
Fuel System4
Electronic Sequential Port Fuel Injection (ESPFI)
Fuel Tank Capacity
6 gal. (22.7 l)
MPG Rating6
42 mpg combined (5.6 l/100 km)
Exhaust
Chrome, 2-1-2 dual with tapered mufflers
Oil Capacity
4 qt. (3.8 l)
Primary Drive
Chain, 34/46 ratio
Gear Ratio
1st: 9.593
2nd: 6.65
3rd: 4.938
4th: 4
5th: 3.407
6th: 2.875
Brakes
Front & Rear: 32 mm, 4-piston fixed
Wheels10
Front & Rear: Enforcer cast aluminum
Tires
Front: 130/60B19 61H
Rear: BW 180/65B16 81H
Lighting9
High beam, running lights, front fender running lights, directional lights, low oil pressure, neutral, engine diagnostics, battery, cruise control, speakers, accessory, security system, gear indication, low fuel warning, ABS, miles to empty display, fog / aux lamp indicator

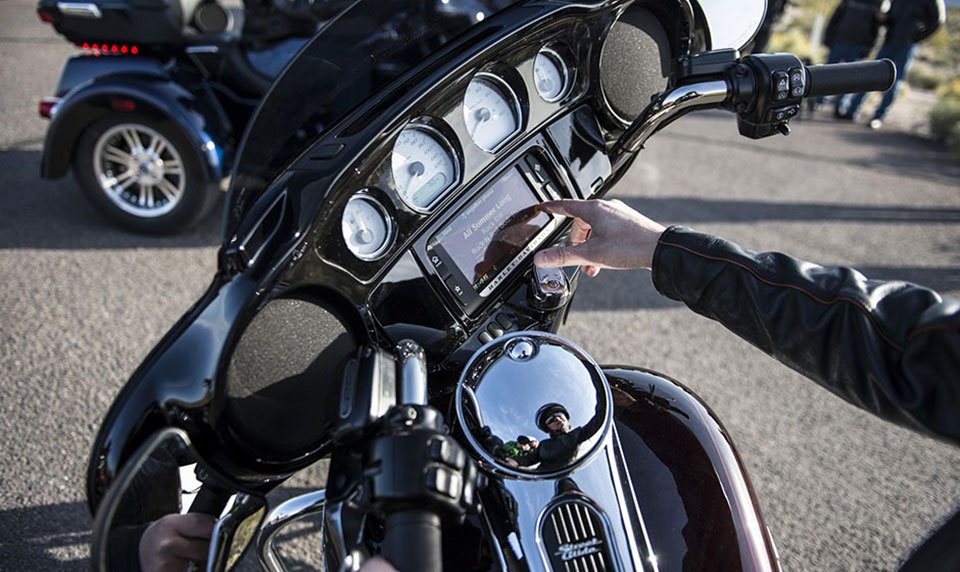

Instrumentation
Speedometer, tachometer, fuel and volt gauges, odometer, trip A, trip B, range to empty, and gear indicator; larger telltale indicators
Capacity
Luggage: 2.3 cu. ft. (0.064 m³)
Trail
6.8 in. (172.72 mm)
