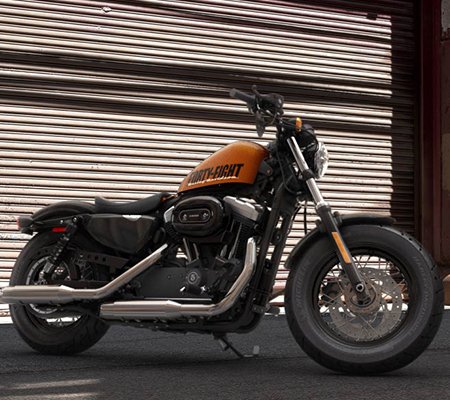

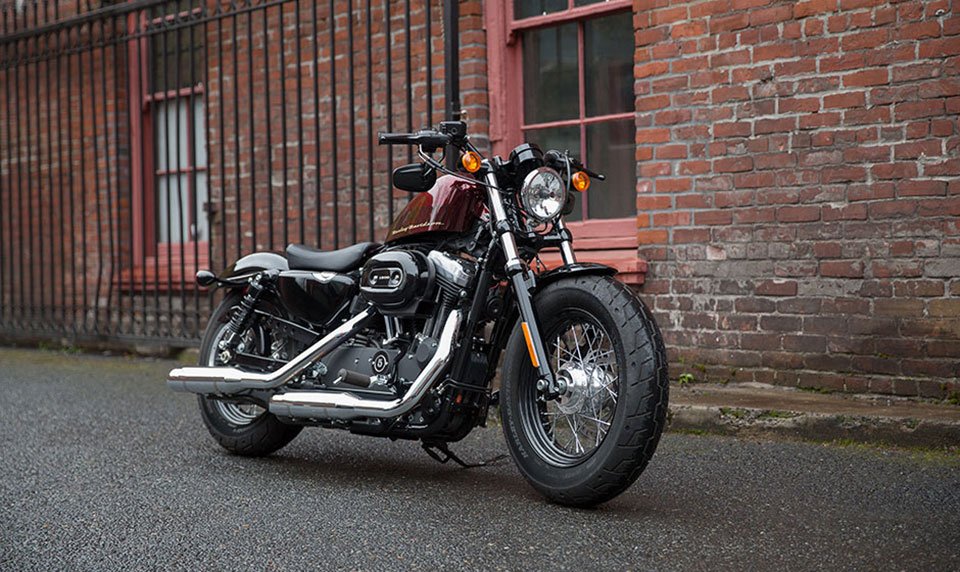

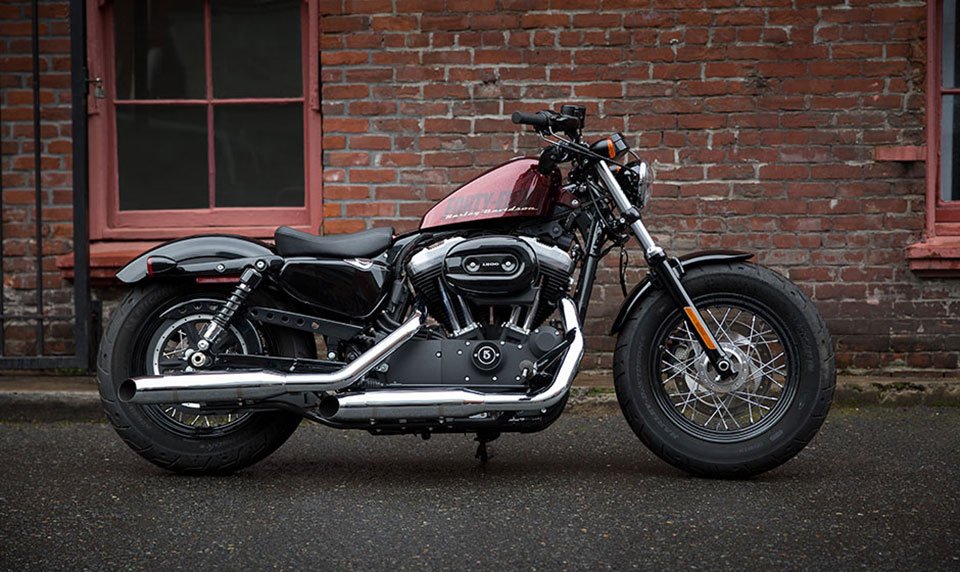

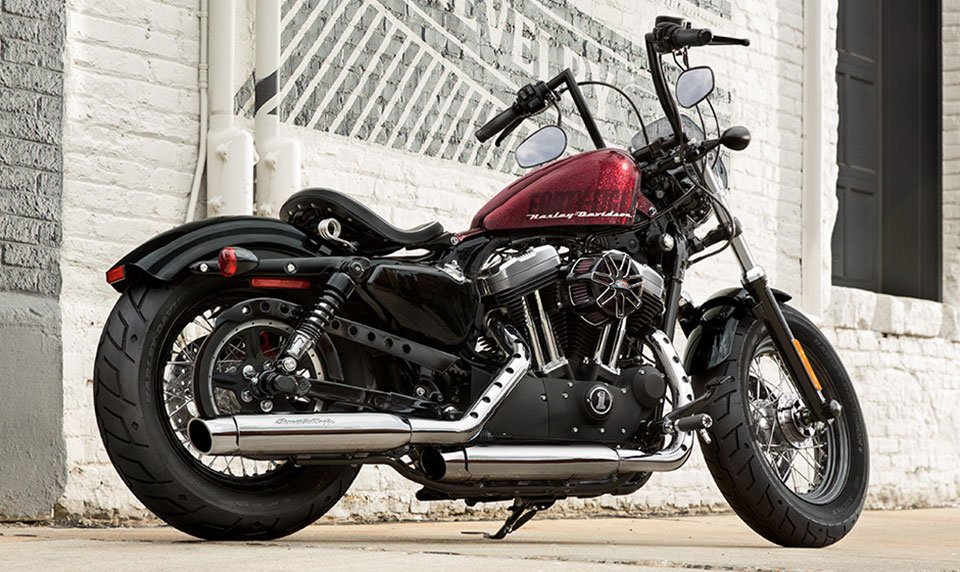

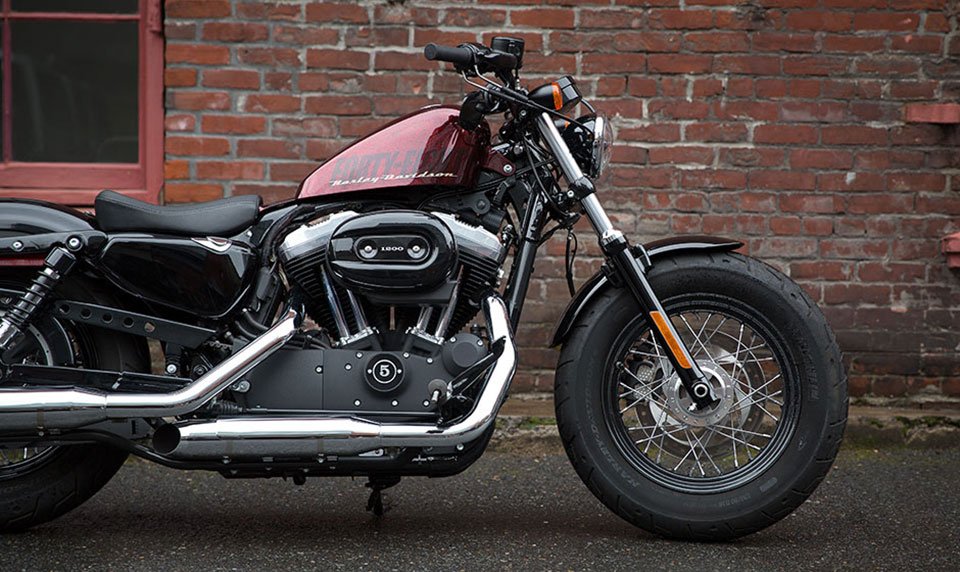

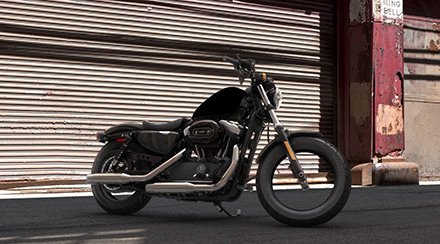

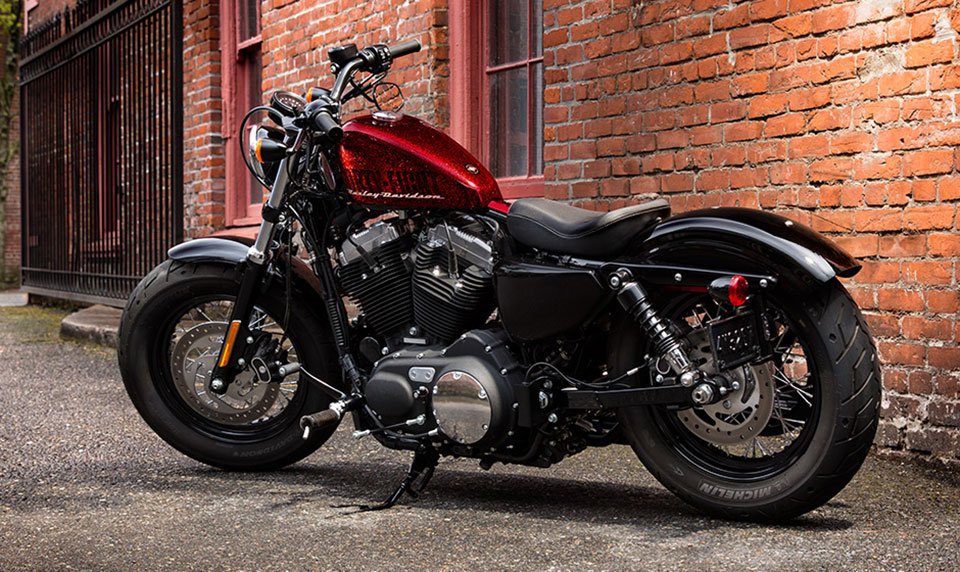

With a fat front tire and steel peanut tank, this low-slung urban brawler is ready to rip through any scene.
Vivid Black
Request A Quote
Charcoal Pearl
Request A Quote
Amber Whiskey
Request A Quote
Hard Candy Cancun Blue Flake
Request A Quote
Hard Candy Big Red Flake
Request A Quote

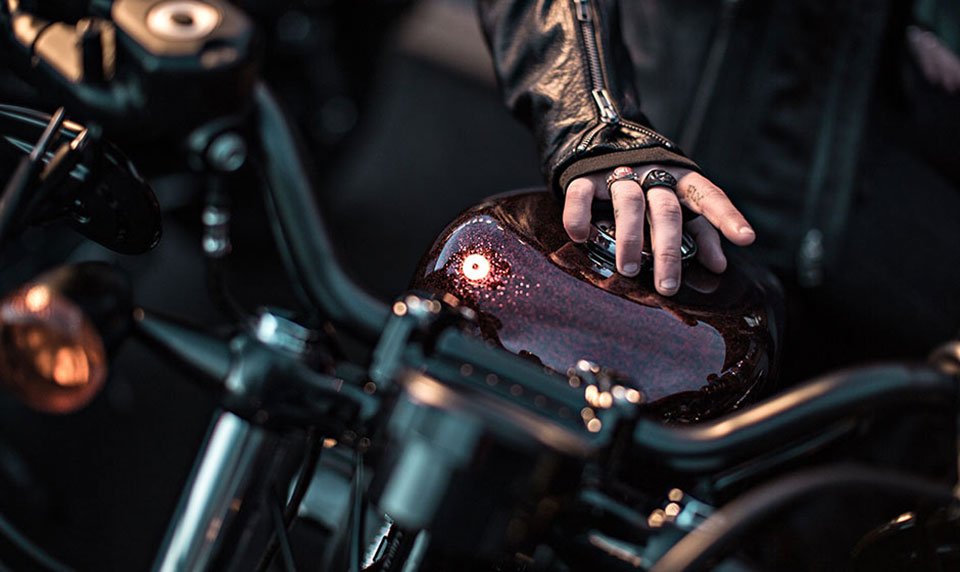

Hard Candy Custom™ Paint: Hard Candy Custom paint is a large metal flake finish that’s more than just paint job, it’s a shining declaration of independence—bright, bold and unique. The Sportster® Forty-Eight® is available in Hard Candy Custom Cancun Blue Flake and Hard Candy Custom Big Red Flake. Recalling the iconic rebel styling of '70s custom bikes, Hard Candy Custom paint marks another milestone in The Motor Company’s legacy of innovation. We start with several passes of 200 micron flake over a black base, then clear coat it, hand-lay the graphics, and apply the many layers of clear coat to allow the flake to shine through. It’s a painstaking process that delivers a premium custom look straight from the factory, so you can start flying your colors with no waiting or extra effort.
Request A Quote
Anti-Lock Brakes (ABS): When the burrito exit comes out of nowhere, you’ll need a little extra braking power. That’s why optional Anti-Lock Brakes (ABS) are available on all Sportster models. ABS improves overall braking performance, and keeps you from locking up under heavy braking. Plus, the entire system is smartly integrated into the design of the bike, so nothing gets in the way of your steel work of art. Because what’s the point of stopping if you can’t make a few heads turn?
Request A Quote
H-D® Smart Security System: The factory-installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle's electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It's this attention to detail and security that make Harley-Davidson® motorcycles unique.
Request A Quote
California emissions
Request A Quote
Length
88.8 in. (2,255 mm)
Weight
540 lbs. (245 kg) dry
562 lbs. (255 kg) running order
Ground Clearance
3.9 in. (100 mm)
Wheelbase
59.8 in. (1,520 mm)
Seat Height8
26 in. (660 mm) laden
28 in. (710 mm) unladen
Displacement
73.4 ci (1,202 cc)
Bore x Stroke
3.5 x 3.81 in. (88.9 x 96.8 mm)
Torque3
70.8 ft. lbs. (96 Nm) @ 3,500 rpm
Fuel System4
Electronic Sequential Port Fuel Injection (ESPFI)
Fuel Tank Capacity
2.1 gal. (7.9 l)
MPG Rating6
48 mpg combined (4.9 l/100 km)
Exhaust
Chrome, staggered shorty with dual slash-cut mufflers
Oil Capacity
2.8 qt. (2.6 l)
Primary Drive
Chain, 38/57 ratio
Gear Ratio
1st: 9.315
2nd: 6.653
3rd: 4.948
4th: 4.102
5th: 3.517
Brakes
Front & Rear: 2-piston
Wheels10
Front & Rear: Black, laced steel
Tires
Front: 130/90B16 73H
Rear: 150/80B16 77H
Lighting9
High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
Instrumentation

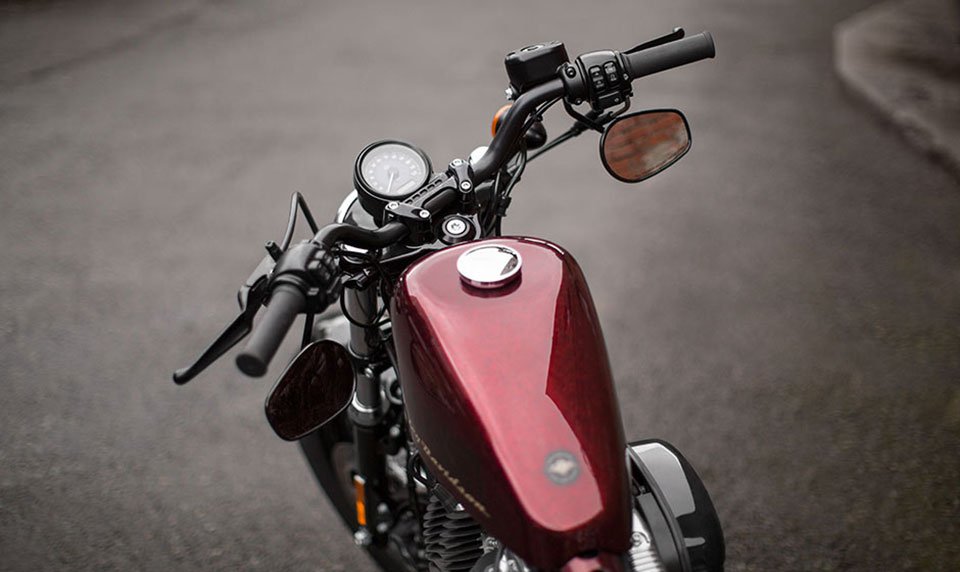

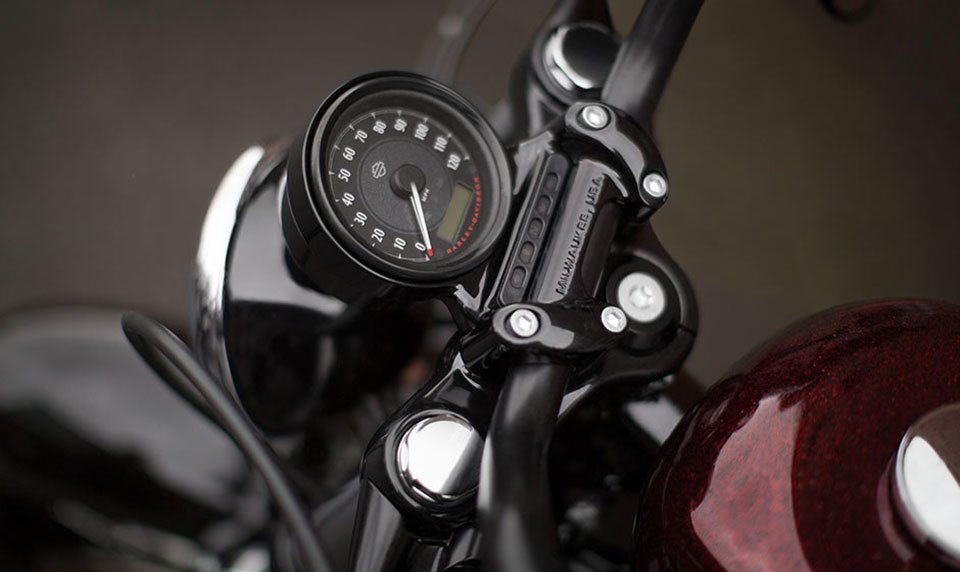

4 in. speedometer mounted low and integrated into handlebar clamp
