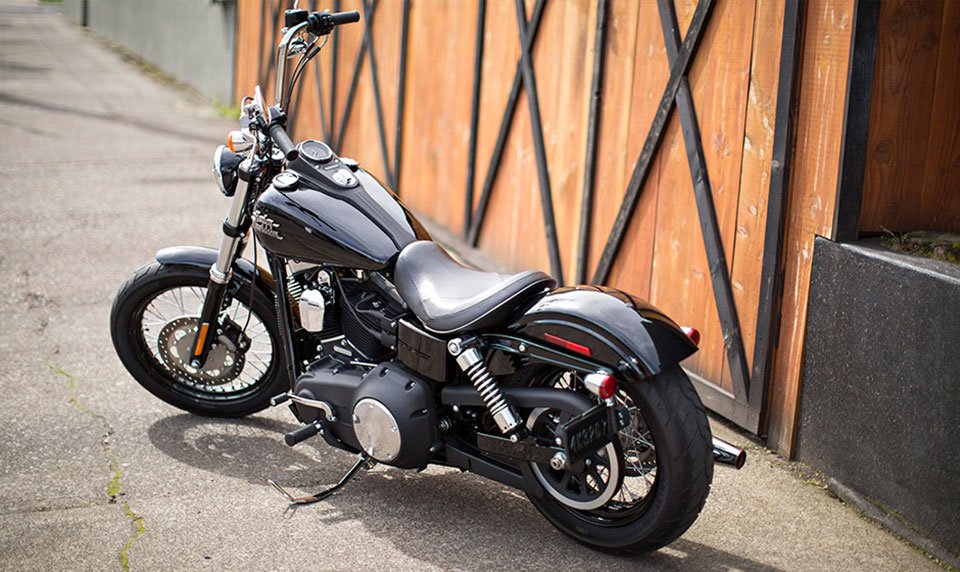

Classic bobber style rides into the modern era, with optional H-D1™ Factory Customization to make it truly one of a kind.

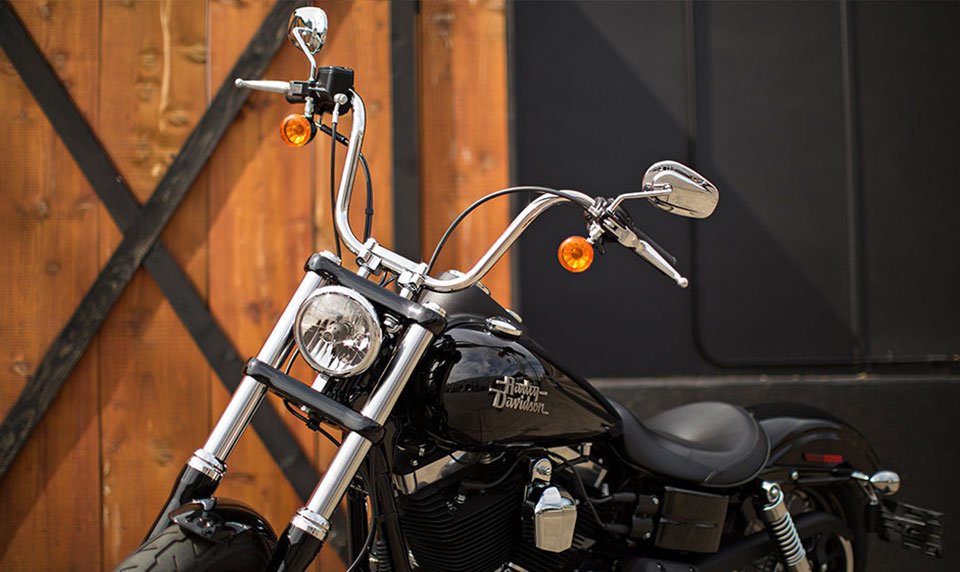

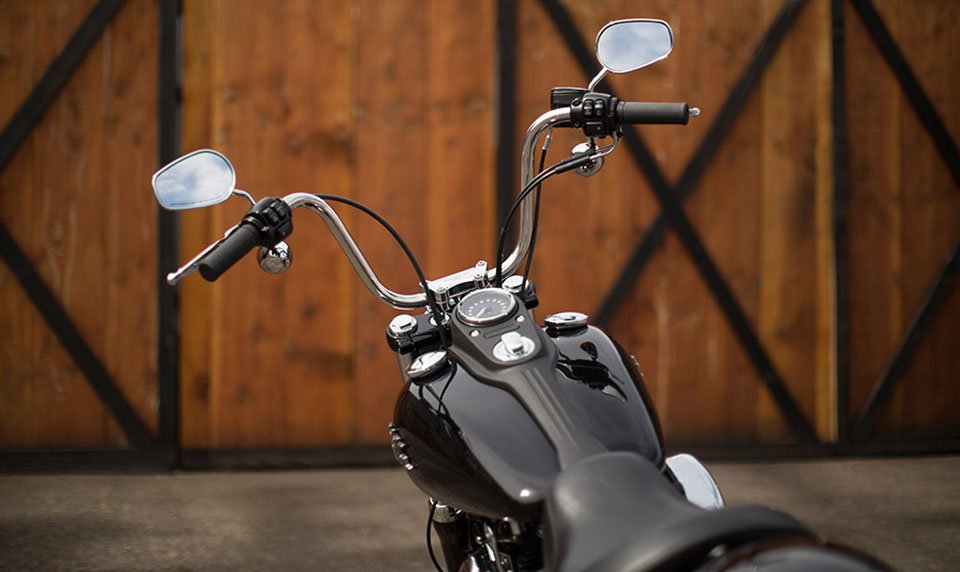

Mini Ape-Hanger Handlebar
Six-Speed Cruise Drive® Transmission

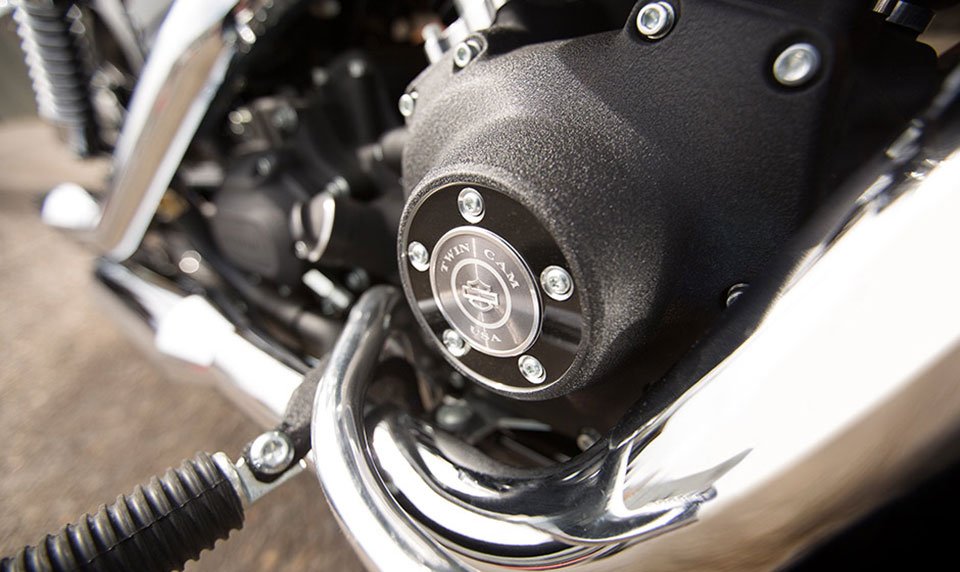

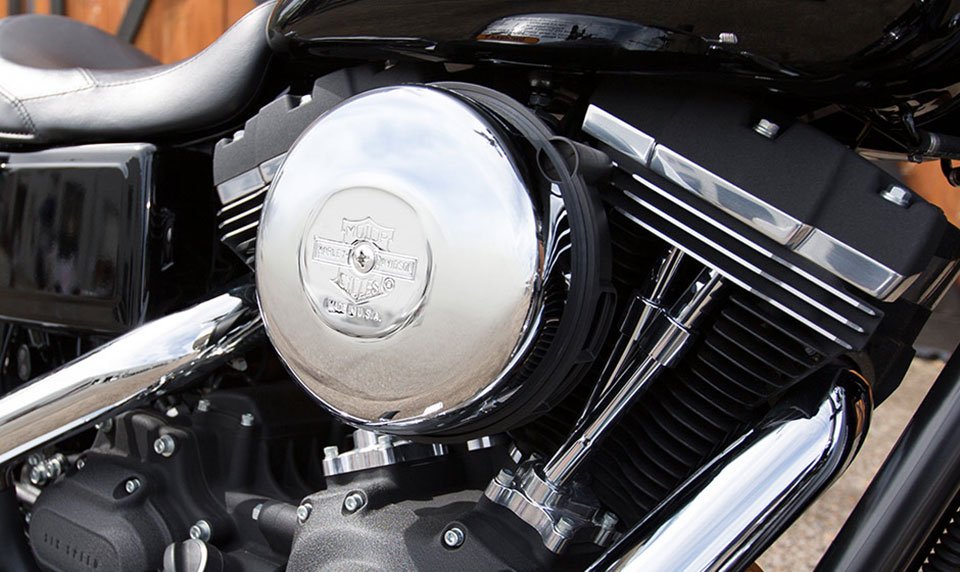

Twin Cam 103™ Engine Heritage
Adjustable Suspension
Mid-Mounted Controls
Specifications
Description
Colors
Options
Dimensions
Engine
Drivetrain
Brakes/Wheels/Tires
Electrical
Operational
Description
Classic bobber style rides into the modern era, with optional H-D1™ Factory Customization to make it truly one-of-a-kind.
1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.
Colors

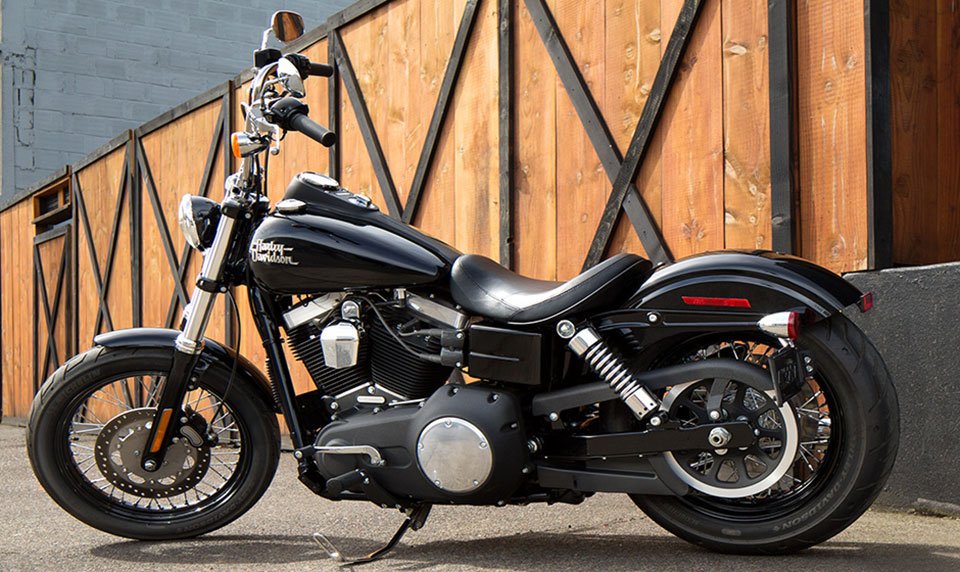

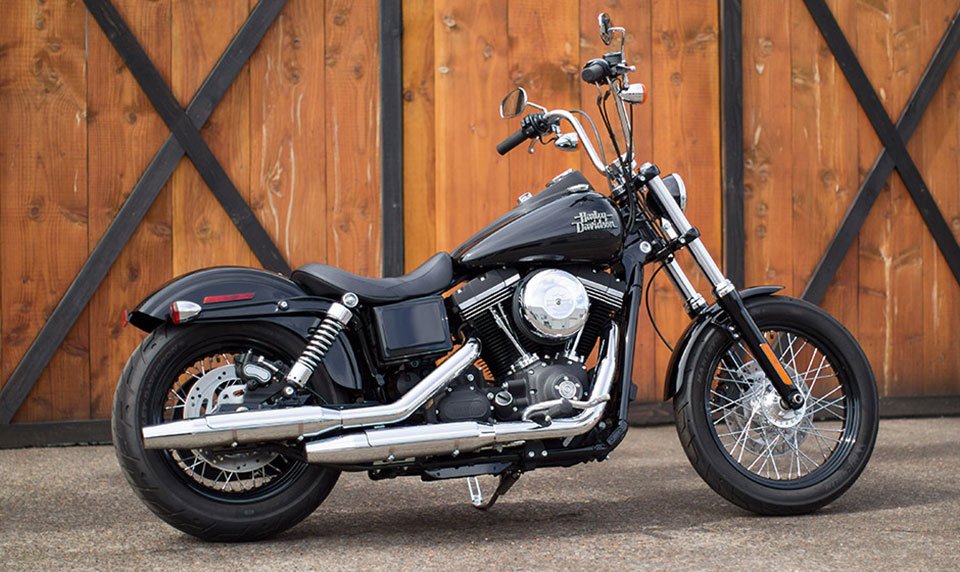

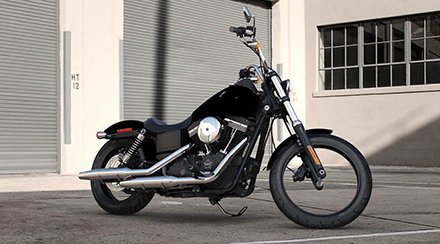

Vivid Black
Request A Quote

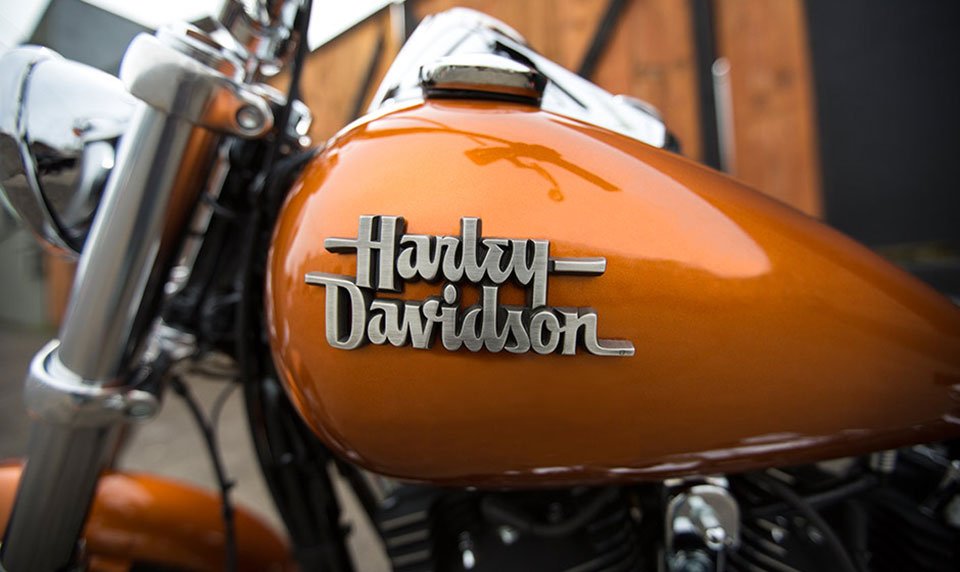

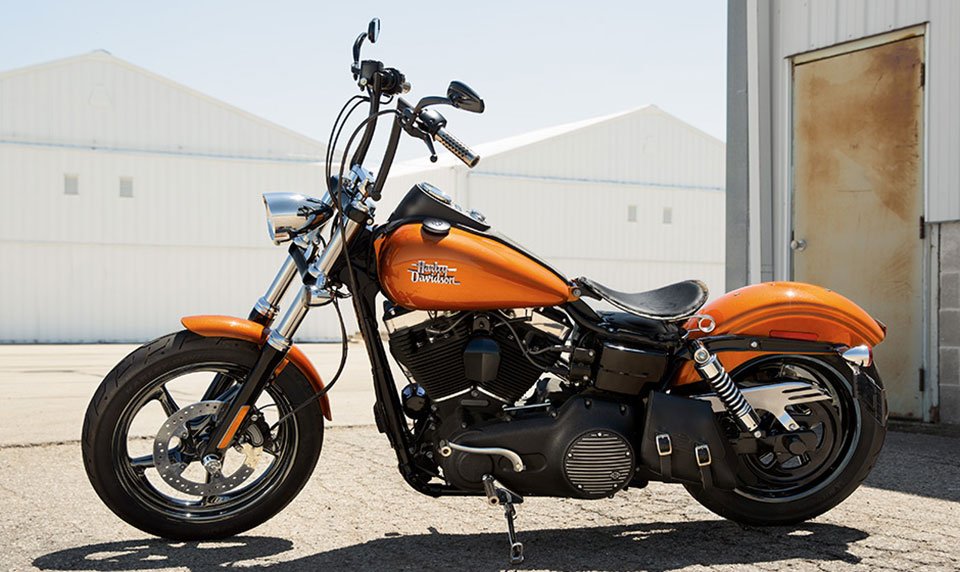

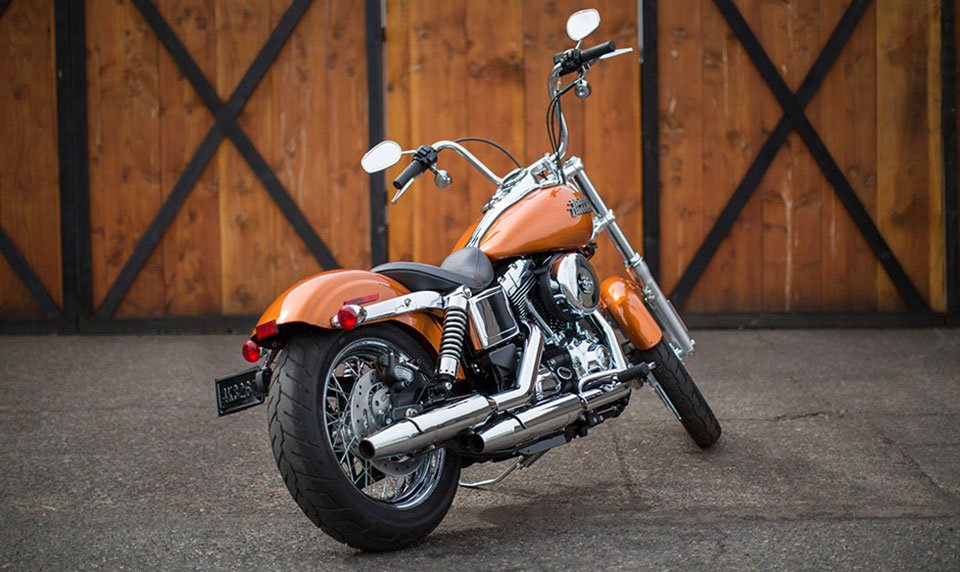

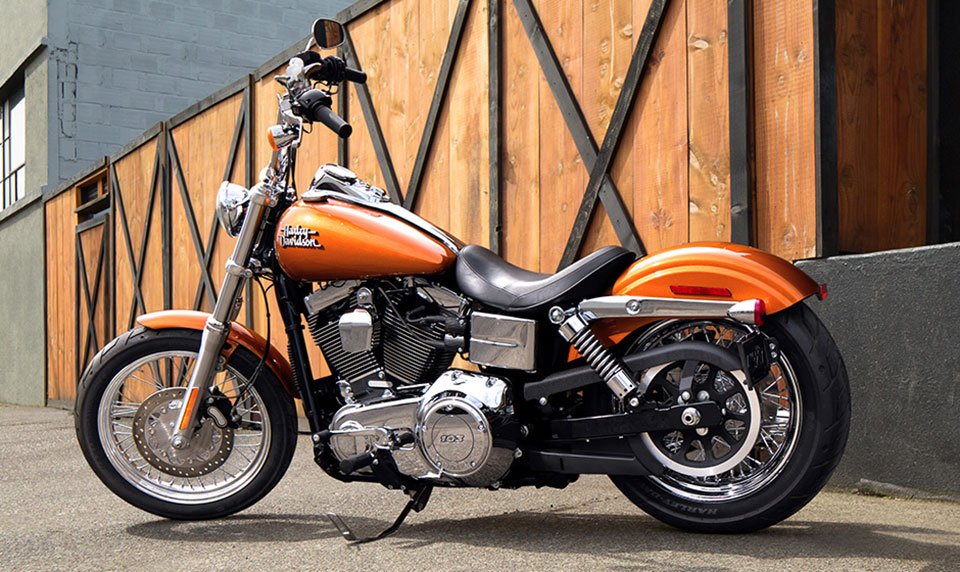

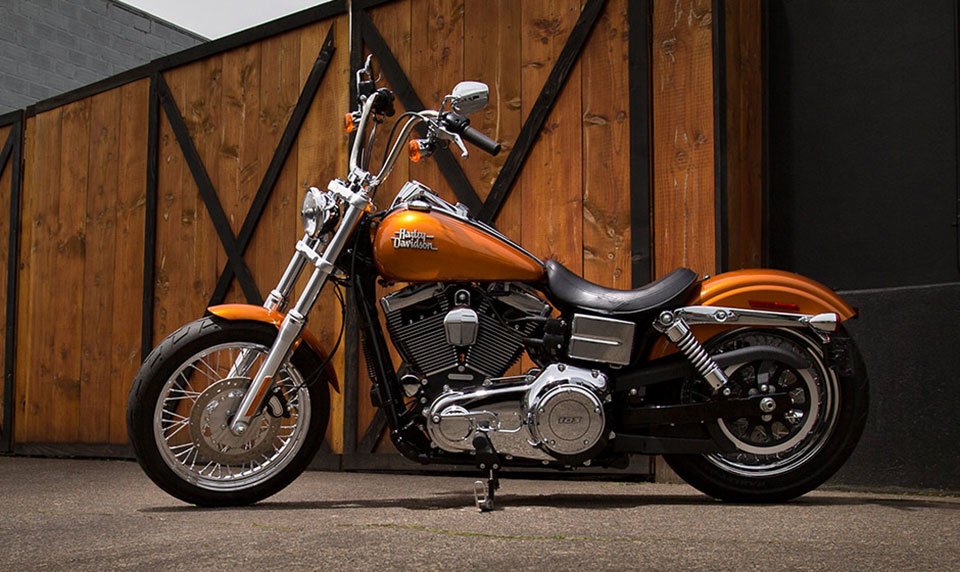

Amber Whiskey
Request A Quote
Black Denim
Request A Quote

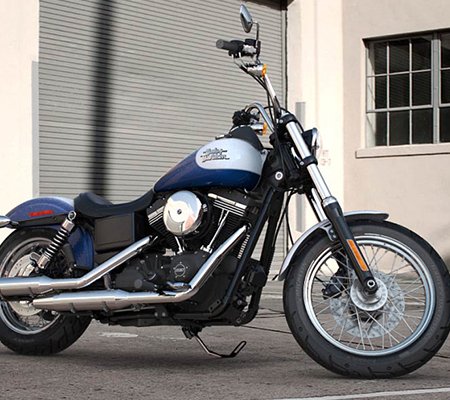

Superior Blue
Request A Quote
Hard Candy Quicksilver Flake Deluxe
Request A Quote
Hard Candy Custom™ Paint: Hard Candy Custom paint is a large metal flake finish that’s more than just a paint job, it’s a shining declaration of independence—bright, bold and unique. The Dyna® Street Bob® model is available in Hard Candy Quicksilver Flake (or, through H-D1™ Factory Customization, in Hard Candy Cancun Blue Flake or Hard Candy Big Red Flake). Recalling the iconic rebel styling of ‘70's custom bikes, Hard Candy Custom paint marks another milestone in The Motor Company’s legacy of innovation. We start with several passes of 200 micron flake over a black base, then clear coat it, hand-lay the graphics, and apply the many layers of clear coat to allow the flake to shine through. It’s a painstaking process that delivers a premium custom look straight from the factory, so you can start flying your colors with no waiting or extra effort.
Request A Quote
1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.
Options
Anti-Lock Brakes: You may be cruising with swagger, but you know safety counts. This sophisticated, factory-installed ABS gives 'stopping power' a double meaning. You'll turn heads with clean, streamlined design. But more importantly, you get certainty in the saddle knowing your bike's going to behave when you need it.
Request A Quote
H-D® Smart Security System: The factory-installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle's electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It's this attention to detail and security that make Harley-Davidson® motorcycles unique.
Request A Quote
California emissions
Request A Quote
H-D1 Factory Customization: Make it yours from the start. Now with H-D1 Factory Customization, your personalized Street Bob motorcycle is built just for you from the Harley-Davidson factory. It's easy—use the online H-D1 Bike Builder tool to configure a bike that fits your style and personality. Select from extended paint offerings and genuine H-D engines, wheels, seats, handlebars, footpeg positions and security. Bring your plan to your Harley-Davidson dealer for consultation and to place your order. Our employees go to work, building your motorcycle according to your design, and in about 4 weeks your masterpiece will be ready for you at your dealer.
Request A Quote
Step up to 103 Power with H-D1: With the Street Bob model a part of our H-D1 Factory Customization program, you can easily personalize your bobber custom. Tell us how you want it and we'll build it for you, straight from the factory.
Request A Quote
1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.
Dimensions
Length
94.3 in. (2,395 mm)
Weight
637 lbs. (289 kg) dry 670 lbs. (304 kg) running order
Ground Clearance
4.7 in. (120 mm)
Wheelbase
64.2 in. (1,630 mm)
Seat Height8
25.5 in. (648 mm) laden 26.8 in. (680 mm) unladen
1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.
8Measurement reflects 180 lb. (81.7 kg) operator weight.
Engine
Engine2
Twin Cam 103™
Displacement
103.1 ci (1,690 cc)
Bore x Stroke
3.87 x 4.38 in. (98.4 x 111.1 mm)
Torque3
98.8 ft. lbs. (134 Nm) @ 3,000 rpm
Compression Ratio
9.6:1
Fuel System4
Electronic Sequential Port Fuel Injection (ESPFI)
Fuel Tank Capacity
4.7 gal. (17.8 l)
MPG Rating6
43 mpg combined (5.5 l/100 km)
Cooling
Air
Exhaust

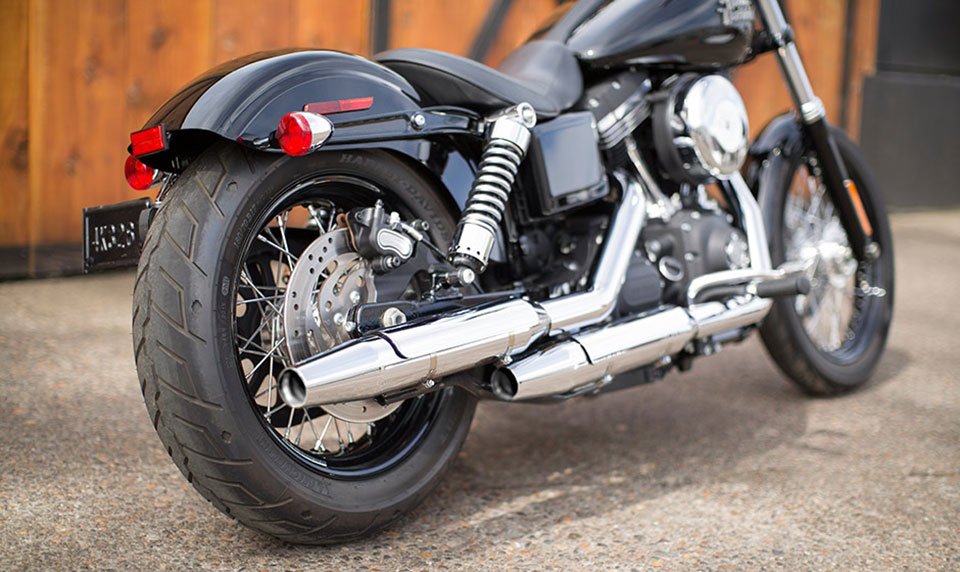

Chrome, staggered, shorty with dual tapered mufflers
Oil Capacity
3 qt. (2.8 l)
1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.
2Recommended 91 octane or higher fuel (R+M)/2.
3Values shown are nominal. Performance may vary by country and region.
4Standard and optional fuel systems may vary by country.
6Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
