Fat Bob®

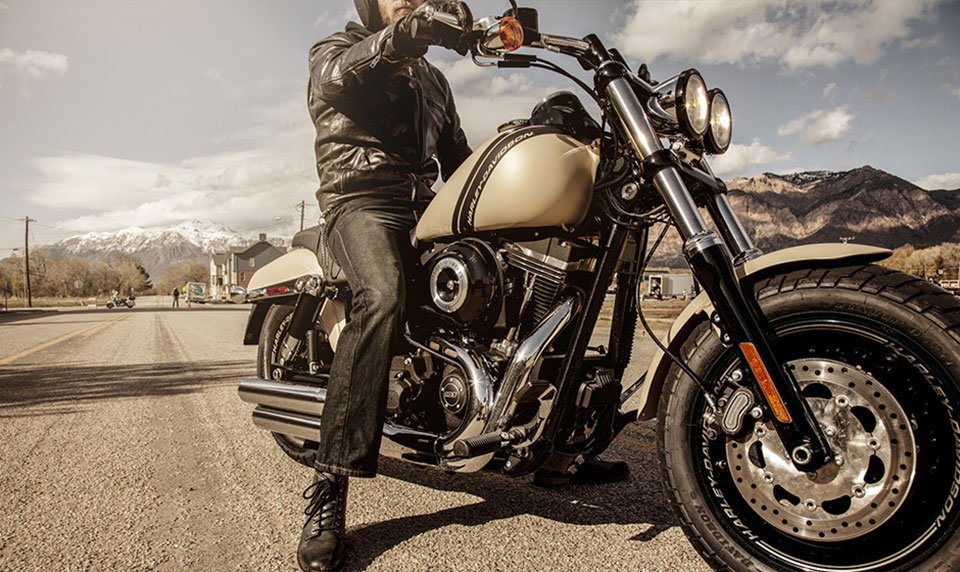

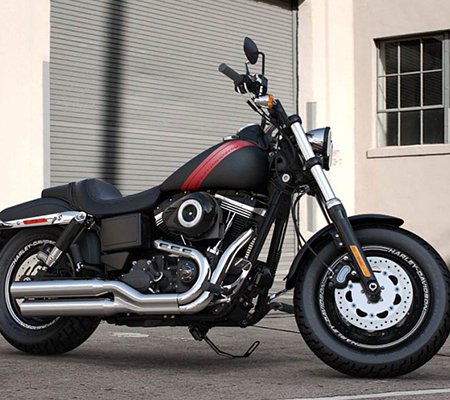

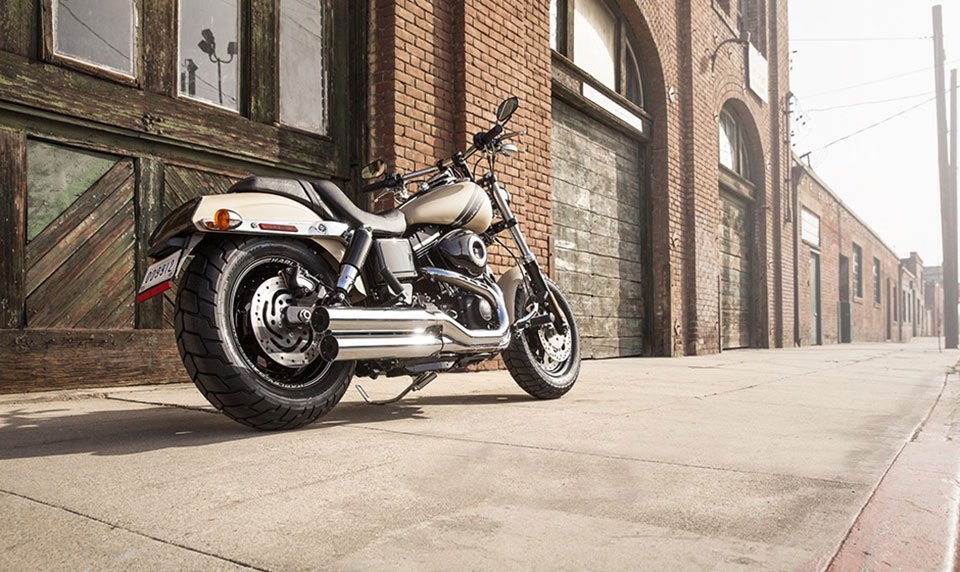

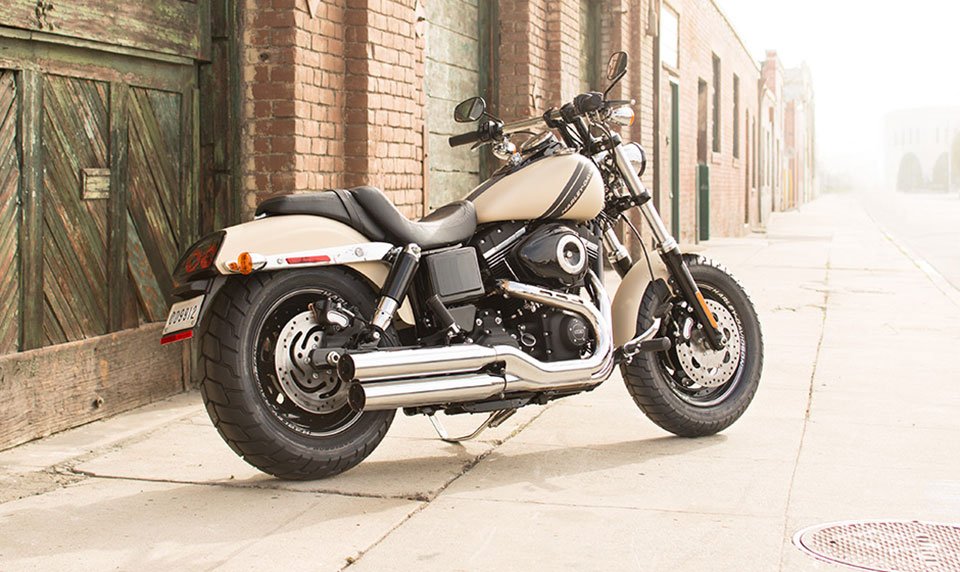

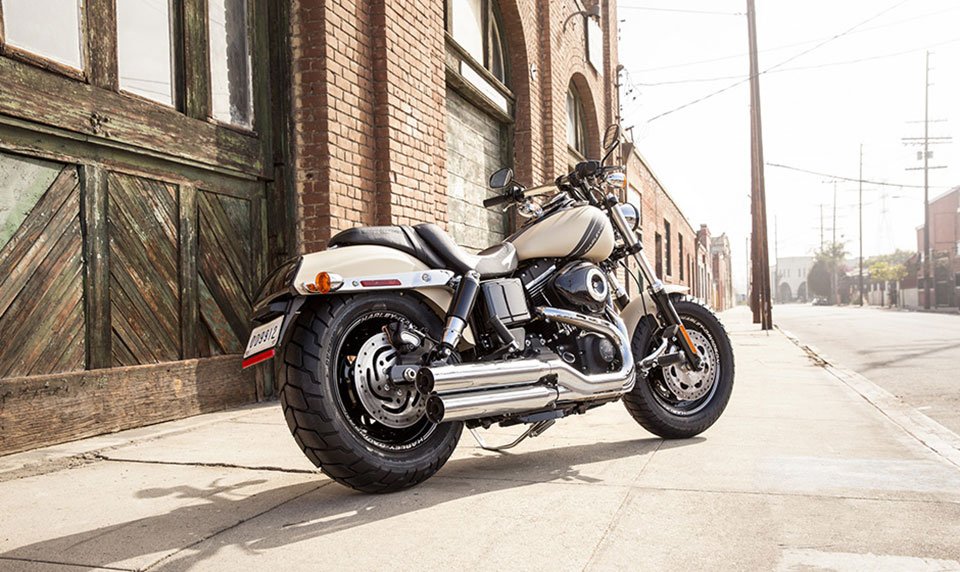

The Fat Bob® motorcycle. Blacked-out finishes, blunt cut mufflers, one-of-a-kind tank graphics. Surly attitude hits a new high.

  • Blacked Out Twin Cam 103™ Engine
  • Black Machined Aluminum Slotted Disc Wheels
  • Six-Speed Cruise Drive® Transmission
  • Drag-Style Handlebar
  • Dual Disc Front Brakes

Specifications

The Fat Bob® motorcycle. Blacked-out finishes, blunt cut mufflers, one-of-a-kind tank graphics. Surly attitude hits a new high.

1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.

Vivid Black
Request A Quote

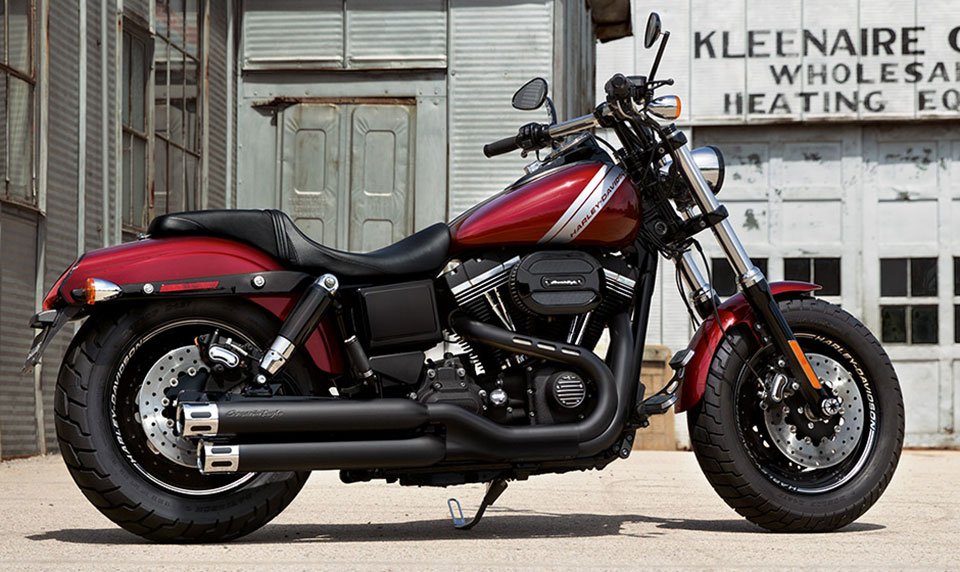

Mysterious Red Sunglo
Request A Quote
Black Denim
Request A Quote
Sand Cammo Denim
Request A Quote
Superior Blue
Request A Quote

1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.

Anti-Lock Brakes: You may be cruising with swagger, but you know safety counts. This sophisticated, factory-installed ABS gives 'stopping power' a double meaning. You'll turn heads with clean, streamlined design. But more importantly, you get certainty in the saddle knowing your bike's going to behave when you need it.
Request A Quote
H-D® Smart Security System: The optional factory-installed next-generation security system features a hands-free fob that automatically arms and disarms the vehicle's electronic security functions as you approach and walk away from the bike. Stick the fob on your ignition key ring and let it do all the work. It's this attention to detail and security that make Harley-Davidson® motorcycles unique.
Request A Quote
California emissions
Request A Quote

1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.

Length
94.5 in. (2,400 mm)
Weight
673 lbs. (305 kg) dry
706 lbs. (320 kg) running order
Ground Clearance
4.9 in. (125 mm)
Wheelbase
63.8 in. (1,620 mm)
Seat Height8
26.1 in. (663 mm) laden
27.2 in. (690 mm) unladen

1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.

8Measurement reflects 180 lb. (81.7 kg) operator weight.

Engine2
Twin Cam 103™
Displacement
103.1 ci (1,690 cc)
Bore x Stroke
3.87 x 4.38 in. (98.4 x 111.1 mm)
Torque3
98.8 ft. lbs. (134 Nm) @ 3,500 rpm
Compression Ratio
9.6:1
Fuel System4
Electronic Sequential Port Fuel Injection (ESPFI)
Fuel Tank Capacity
5 gal. (18.9 l)
MPG Rating6
42 mpg combined (5.6 l/100 km)
Cooling
Air
Exhaust
Chrome, "Tommy Gun" 2-1-2 collector with dual mufflers
Oil Capacity
3 qt. (2.8 l)

1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.

2Recommended 91 octane or higher fuel (R+M)/2.

3Values shown are nominal. Performance may vary by country and region.

4Standard and optional fuel systems may vary by country.

6Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

Transmission
6-speed
Primary Drive
Chain, 34/46 ratio
Gear Ratio
1st: 9.311
2nd: 6.454
3rd: 4.793
4th: 3.882
5th: 3.307
6th: 2.79

1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.

Brakes
Front: 4-piston fixed
Rear: 2-piston torque-free floating
Wheels10
Front & Rear: Gloss black cast aluminum with laser etched graphics
Tires
Front: 130/90B16 67H
Rear: 180/70B16 77H

1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.

10Standard and optional wheels may vary by country and region.

Lighting9
High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system (optional), 6-speed, low fuel warnings
Instrumentation
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM / gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light

1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.

9North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.

Rake
29°
Trail
4.9 in. (125 mm)

1Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. See your dealer for details.

Paint & Wheels

Paint & Wheels

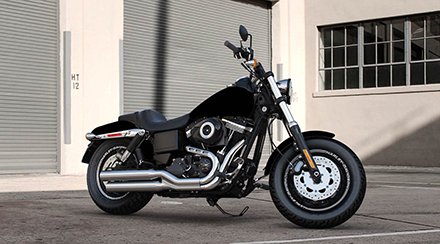

Background
