Engine
| Type | Air-cooled, four-stroke, 45° V-Twin | |
| Displacement | 1203 cc | |
| Bore & Stroke | 3.5 x 3.8 in. / 88.8 x 96.8 mm | |
| Compression Ratio | 10:1 | |
| Valve Train | OHV, two valves per cylinder, hydraulic adjusters | |
| Valve Adjustment | Self adjusting | |
| Carburetion | Dynamic Digital Fuel Injection (DDFI) | |
| HP/Torque | 101 hp @ 6000 rpm; 90 ft-lbs @ 5500 rpm | |
| Lubrication | Dry sump, 2.5 qt (2366 cc) | |
| Battery | Inclined 12-volt, 19 amp-hour, SLA (Sealed Lead Acid) |
Drive Train
| Transmission | Five-speed, constant mesh | |
| Ratios | (1) 2.69, (2) 1.85, (3) 1.43, (4) 1.18, (5) 1.00 | |
| Primary Drive | Triplex chain; 1.6:1 | |
| Clutch | Wet, multiplate | |
| Final Drive | Kevlar® belt; ratio 2.26:1 |
Chassis
| Frame | Tubular perimeter chrome-moly with Uniplanar® powertrain vibration isolation system; black finish | |
| Wheelbase | 55.0 in/139.7 cm | |
| Rake / Trail | 24.5°, 3.8 in/9.7 cm | |
| Front Suspension | Showa® forks with adjustable rebound damping and preload | |
| Rear Suspension | Aluminum arc swingarm; Showa extension type damper with adjustable compression damping and spring preload | |
| Front Wheel Travel | 4.7 in/11.9 cm | |
| Rear Wheel Travel | 4.6 in/11.7 cm | |
| Front Brake | Six piston caliper, 340 mm stainless steel floating rotor | |
| Rear Brake | Single piston caliper, 230 mm stainless steel rotor | |
| Front Wheel | 3-spoke cast, 3.5 x 17; Stardust Silver finish | |
| Rear Wheel | 3-spoke cast, 5.0 x 17; Stardust Silver finish | |
| Front Tire | Dunlop SportMax II Touring Radial, 120/70 ZR 17 D205F | |
| Rear Tire | Dunlop SportMax II Touring Radial, 170/60 ZR 17 D205 | |
| Seat Height | 29.5 in/74.9 cm | |
| Fuel Tank Capacity | 5.0 gal. (.6 gal. reserve)/18.9L (2.2L reserve) | |
| Miles Per Gallon <ETH> EPA Test Reg. | 45 City/53 Highway | |
| Gross Vehicle Weight Rating | 885 lbs/401.5 kg | |
| Dry Weight | 435 lbs/197 kg | |
| Load Capacity | 405 lbs/184 kg |
Instruments
Electronic speedometer, tachometer, odometer, tripmeter, warning light for low oil pressure, indicators for high beam, turn signals and neutral.
Warranty
12 months, unlimited miles
Colors
Blue Streak, Carbon Black, Reactor Yellow, Molten Orange, Volcano Grey
Optional Features
Buell P/M 3.5 x 17 front and 5.5 x 17 rear, polished spun aluminum wheels
Special Features
European passing lamp, cargo loops, spring-loaded rider foot pegs
All specifications are subject to change.

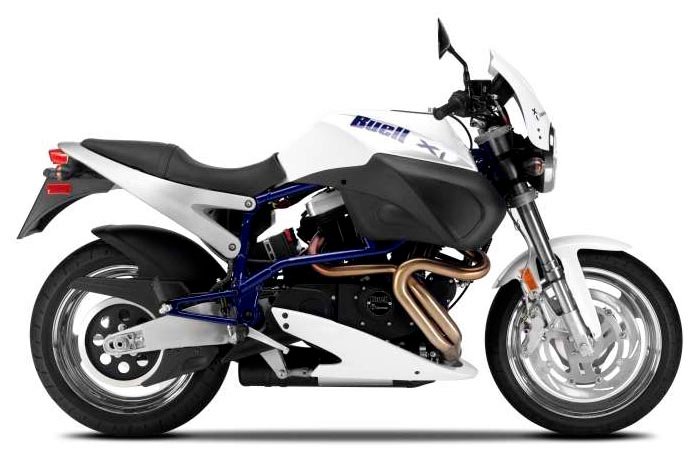

The Lightning® X1's 101hp, 1203cc Thunderstorm™ engine combines street smarts with a Dynamic Digital Fuel Injection system that provides optimum performance based on temperature, throttle opening and engine speed. Adjustable, race-bred suspension results in an aggressive ride, while a narrow profile and mass centralized muffler allow for intuitive lean. A cast-aluminum tailsection, rowdy chain fairing, and optional polished aluminum wheels contribute to styling that's about as subtle as a bench press in a ballet studio. And for those restricted to a diet of eating dust, the X1 is capable of leaving poseurs at the lights.
