Engine
| Type | Air-cooled, four-stroke, 45° V-Twin | |
| Displacement | 1203 cc | |
| Bore & Stroke | 3.5 x 3.8 in. / 88.8 x 96.8 mm | |
| Compression Ratio | 10:1 | |
| Valve Train | OHV, two valves per cylinder, hydraulic adjusters | |
| Valve Adjustment | Self adjusting | |
| Carburetion | Dynamic Digital Fuel Injection (DDFI) | |
| HP/Torque | 101 hp @ 6000 rpm; 90 ft-lbs @ 5500 rpm | |
| Lubrication | Dry sump, 2.0 qt. (1894 cc) | |
| Battery | 12-volt, 19 amp-hour, SLA (Sealed Lead Acid) |
Drive Train
| Transmission | Five-speed, constant mesh | |
| Ratios | (1) 2.69, (2) 1.85, (3) 1.43, (4) 1.18, (5) 1.00 | |
| Primary Drive | Triplex chain; 1.6:1 | |
| Clutch | Wet, multiplate | |
| Final Drive | Kevlar® belt; ratio 2.26:1 |
Chassis
| Frame | Tubular perimeter chrome-moly frame with Uniplanar® powertrain vibration isolation system; Black, Nuclear Blue or Blazing Orange finish | |
| Wheelbase | 55.0 in/139.7 cm | |
| Rake / Trail | 24.5°, 3.8 in/9.7 cm | |
| Front Suspension | Showa® inverted forks with adjustable compression and rebound damping | |
| Rear Suspension | Aluminum arc swingarm; Showa extension type damper with adjustable compression damping, rebound damping and spring preload | |
| Front Wheel Travel | 4.7 in/11.9 cm | |
| Rear Wheel Travel | 4.6 in/11.7 cm | |
| Front Brake | Six piston caliper, 340 mm stainless steel floating rotor | |
| Rear Brake | Single piston caliper, 230 mm stainless steel rotor | |
| Front Wheel | 3-spoke cast, 3.5 x 17; Stardust Silver, Nuclear Blue or Blazing Orange finish | |
| Rear Wheel | 3-spoke cast, 5.0 x 17; Stardust Silver, Nuclear Blue or Blazing Orange finish | |
| Front Tire | Dunlop SportMax II Touring Radial, 120/70 ZR 17 D205F | |
| Rear Tire | Dunlop SportMax II Touring Radial, 170/60 ZR 17 D205 | |
| Seat Height | 29.5 in/74.9 cm | |
| Fuel Tank Capacity | 5.4 gal. (Low fuel light at .4 gal.)/ 20.4L (low fuel light at 1.5L) | |
| Miles Per Gallon <ETH> EPA Test Reg. | 45 City/53 Highway | |
| Gross Vehicle Weight Rating | 915 lbs./415 kg | |
| Dry Weight | 450 lbs./204 kg | |
| Load Capacity | 419 lbs./190 kg |
Instruments
Electronic speedometer, tachometer, odometer, tripmeter, clock, warning light for low oil pressure, indicators for high beam, turn signals, neutral, low fuel light and check engine light.
Warranty
12 months, unlimited miles
Colors
Carbon Black, Blue Streak, Reactor Yellow, Volcano Grey
Optional Features
Buell P/M 3.5 x 17 front and 5.5 x 17 rear, polished spun aluminum wheels
Special Features
Sport touring handlebars, European passing lamp, spring-loaded rider foot pegs
All specifications are subject to change.

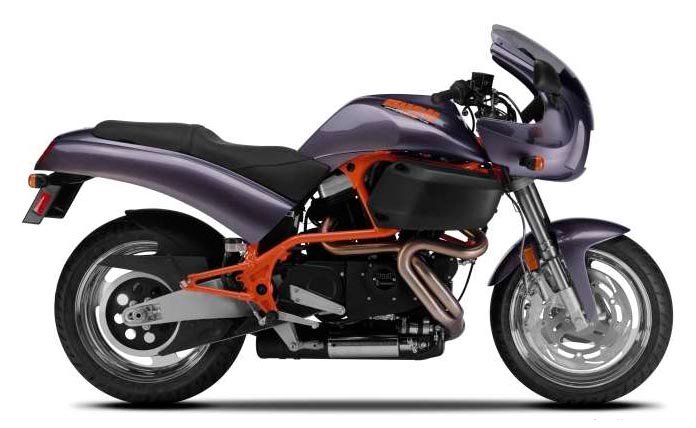

Now go get acquainted on a suitably twisted back road. Even at aggressive mid-range speeds, the Thunderbolt™ S3's 101hp, 1203cc Thunderstorm™ engine provides exceptional power without sacrificing one iota of comfort.
Performance is enhanced by Dynamic Digital Fuel Injection, a closed looped system that adjusts to changing conditions for peak performance. Thanks to a 55-inch wheelbase and inverted front fork, handling is precise, responsive and virtually intuitive.
Creature comforts? You get a loaded dash with tachometer and clock. Naked styling that courts the wind. Sport touring handlebars. And a substantial saddle for roomy two-up comfort.
Why, it's the civilized way to pound the asphalt into submission.
