Engine
| Type | Air-cooled, four-stroke, 45° V-Twin | |
| Displacement | 1203 cc | |
| Bore & Stroke | 3.5 x 3.8 in. / 88.8 x 96.8 mm | |
| Compression Ratio | 10:1 | |
| Valve Train | OHV, two valves per cylinder, hydraulic adjusters | |
| Valve Adjustment | Self adjusting | |
| Carburetion | 40 mm Keihin CV Carburetor | |
| HP/Torque | 91 hp @ 6000 rpm; 85 ft-lbs @ 4900 rpm | |
| Lubrication | Dry sump, 2.0 qt (1890 cc) | |
| Battery | 12-volt, 19 amp-hour, SLA (sealed lead acid) |
Drive Train
| Transmission | Five-speed, constant mesh | |
| Ratios | (1) 2.69, (2) 1.85, (3) 1.43, (4) 1.18, (5) 1.00 | |
| Primary Drive | Triplex chain; 1.6:1 | |
| Clutch | Wet, multiplate | |
| Final Drive | Kevlar® belt; ratio 2.26:1 |
Chassis
| Frame | Tubular perimeter chrome-moly with Uniplanar® powertrain vibration isolation system; black finish | |
| Wheelbase | 55.0 in/139.7 cm | |
| Rake / Trail | 24.5°, 3.8 in/9.7 cm | |
| Front Suspension | Showa® forks with adjustable rebound damping and preload | |
| Rear Suspension | Aluminum arc swingarm; Showa extension type damper with adjustable compression damping and spring preload | |
| Front Wheel Travel | 4.7 in/11.9 cm M2 Low: 3.7 in/9.4 cm | |
| Rear Wheel Travel | 4.6 in/11.7 cm M2 Low: 3.5 in/8.9 cm | |
| Front Brake | Six piston caliper, 340 mm stainless steel floating rotor | |
| Rear Brake | Single piston caliper, 230 mm stainless steel roto | |
| Front Wheel | 3-spoke cast, 3.5 x 17; Stardust Silver finish | |
| Rear Wheel | 3-spoke cast, 5.0 x 17; Stardust Silver finish | |
| Front Tire | Dunlop SportMax II Touring Radial, 120/70 ZR 17 D205F | |
| Rear Tire | Dunlop SportMax II Touring Radial, 170/60 ZR 17 D205 | |
| Seat Height | 29.5 in/74.9 cm M2 Low: 27.5 in/69.9 cm | |
| Fuel Tank Capacity | 5.0 gal. (.6 gal. reserve)/18.9L (2.2L reserve) | |
| Miles Per Gallon <ETH> EPA Test Reg. | 45 City/53 Highway | |
| Gross Vehicle Weight Rating | 885 lbs/401.5 kg | |
| Dry Weight | 435 lbs/197 kg | |
| Load Capacity | 405 lbs/184 kg |
Instruments
Electronic speedometer, tachometer, odometer, tripmeter, warning light for low oil pressure, indicators for high beam, turn signals and neutral.
Warranty
12 months, unlimited miles
Colors
Blue Streak, Carbon Black, Reactor Yellow, Molten Orange, Volcano Grey
Special Features
European passing lamp, cargo loops, spring-loaded rider foot pegs
All specifications are subject to change.

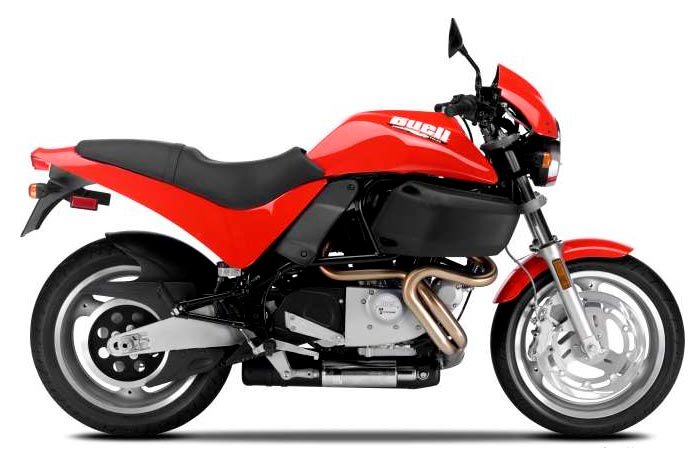

With 85 ft. lbs. of torque at 4900rpm, the 91hp, 1203cc Cyclone® M2 produces plenty of off-the-line muscle the instant you let out the clutch. Adjustable suspension and 43mm of front fork assure precise, responsive handling whether you're dodging around town or dishing it out in the corners. Roomy, neutral seating offers both comfort and performance, while serious stopping power comes compliments of a six-piston caliper front brake. New for 2001, a redesigned dash complete with tachometer for superior street performance.
Torque on.
