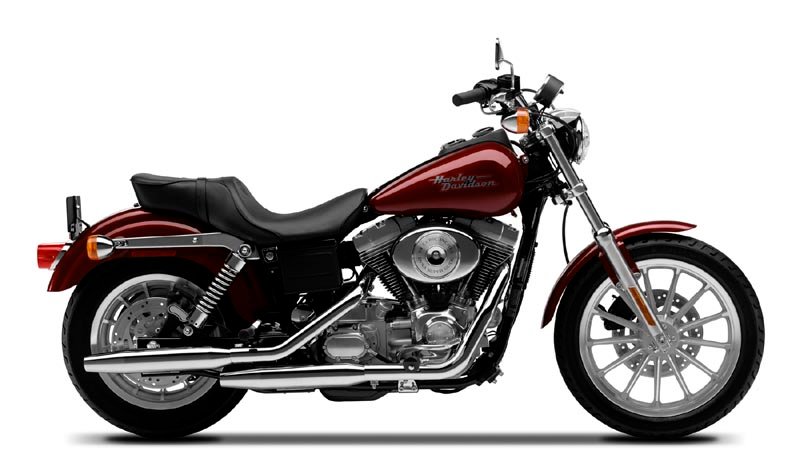

FXD Dyna Super Glide
Length
(IN./MM) |
|
91.0/2309.6 |
Seat Height
(IN./MM) 1 |
|
26.5/672.6 |
Ground Clearance
(IN./MM) |
|
5.4/136.5 |
Rake/Trail
(°/IN.) |
|
28.0/4.1 |
Wheelbase
(IN./MM) |
|
62.5/1586.3 |
Dry Weight
(LBS./KG) |
|
612.0/277.8 |
| Engine |
|
Twin Cam 88 vibration isolation-mounted 5 |
Bore x Stroke
(IN.) |
|
3.75 x 4.00 |
Displacement
(CU. IN./CC) |
|
88.0/1450 |
| Compression Ratio |
|
8.9:1 |
| Fuel System |
|
Carburetor |
Oil Capacity
(U.S. QTS.) |
|
3.0 |
Fuel Capacity
(U.S. GALS.)
(Includes reserve on carb. models) |
|
4.9 |
| Exhaust System |
|
Staggered shorty duals |
| Primary Drive |
|
Double-row chain |
| Gear Ratios (Overall) |
|
1st: 10.110
2nd: 6.958
3rd: 4.953
4th: 3.862
5th: 3.150 |
Torque
(FT. LBS. @ RPMS) |
|
82.0 @ 3500 rpm |
Brakes, Dia. x W.
(IN. Front/IN. Rear) |
|
11.5 x .20/11.5 x .23 |
Braking
(Maximum Loaded Vehicle WT.) |
|
165 ft. @ 60 mph
49.50m @ 96.60 kmph |
Tire Size
(Front, Rear) |
|
100/90-57H
130/90B 16 73H |
| Wheels |
|
13 spoke silver cast aluminum alloy (laced option) |
| Miles Per Gallon 2 |
|
50 hwy/42 city |
Lean Angles
Per SAE J1168 (Right/Left) |
|
31°/32°
|
| Instruments |
|
Electronic speedometer with odometer and resettable trip meter; fuel gauge; oil pressure indicator lamp; engine diagnostic light, security system light (optional) |
| Color Options 3 |
|
Vivid black, luxury blue pearl, diamond ice pearl, real teal pearl, luxury rich red pearl |
All models feature 5-speed transmission and Gates aramid fiber reinforced Poly Chain® belt final drive; 40mm constant velocity carburetor with enrichner and accelerator pump (except Electronic Sequential Port Fuel Injection models); multi-plate clutch with diaphragm spring in oil bath; and twelve-month, unlimited mileage warranty. Throttle friction screws should not be used under normal stop-and-go operating conditions. We reserve the right to discontinue models or change specifications at any time without incurring any obligations. The vehicles pictured in this website and those built to the specifications listed are for sale in the U.S. only. Vehicle and accessory specifications may vary from country to country depending on local laws and some models and accessories are not available in certain countries. Be aware that many countries prohibit the importation, registration and/or use of vehicles and accessories not built to their country specifications. Check with your local dealer for details.
1 Measurement reflects 180# operator weight.
2 Based on tests conducted under ideal lab conditions per U.S. E.P.A. test procedures. Your mileage will vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration. Break-in mileage will vary.
3 Availability of colors may vary from dealer to dealer, and is subject to change without notice.
4 Model not available in all markets.
5 Recommended 91 octane or higher fuel (R+M)/2.
6 C.B. prohibited by law in some countries.
7 Except where prohibited by law.
We care about you.
Sign up for a Motorcycle Safety Foundation rider course today (for a course near you call 1-800-447-4700). When enjoying your Harley-Davidson® motorcycle be sure to ride safely and within the limits of the law and your abilities. Ride with your headlight on and watch out for the other person. Always wear a helmet, proper eyewear and appropriate clothing and insist your passenger does, too. Never ride while under the influence of alcohol or drugs. Know your Harley® and read and understand your owner's manual from cover to cover. Protect your privilege to ride by joining the American Motorcyclist Association. To locate the Harley-Davidson dealer in your area, call 1-800-443-2153 TOLL FREE in the U.S.A. and Canada.
|
|
|
MANUFACTURER'S SUGGESTED
RETAIL PRICING (U.S. ONLY)
$11,895
Color Options:
Two-Tone - NA
Pearl - $240
Laced Wheel Option - $320
(if applicable)
ESPFI - N/A
CA Emissions - $290
(if applicable)
Freight - $205
H-D® Factory Security System - $250
Prices listed exclude set-up, taxes, title and licensing, and are subject to change. Dealer prices may vary. See your dealer for details.
|
|
|
